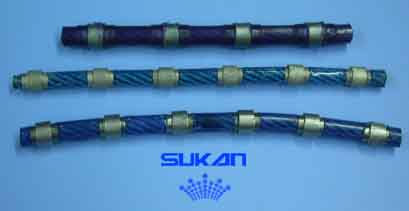

Diamond wire saw: diamond wire saw are used in stone quarry mining and block shaping and profile processing, they are flexible and unlimited to block size with long life and high efficiency in processing granite and marble and other stones and construction materials.
The diamond wire is now widely recognized as the ideal solution for both marble mining and working due to the relatively low cost and high production offered. Recently the market has evolved from the traditional wire with springs to the safer and more practical plasticised wire.

Type
Specification
Life
Stone Kind
Granite
G--10

¦µ10/¦µ7.5/6

(40Beads/meter&37Beads/meter)

7--10M2/M
middle-hard hard materials
G--8.8

¦µ8.8/¦µ6.6/6

(37Beads/meter)

6--9M2/M
middle-hard hard materials
G--8.2

¦µ8.2/¦µ6/6

(37Beads/meter)

6--9M2/M
middle-hard hard materials
Marble
M--11

¦µ11/¦µ8/6

(32Beads/meter)
15--25M2/M
middle-hard hard materials
M--10
¦µ10/¦µ7.5/6 (32Beads/meter)
15--25M2/M
middle-hard hard materials
M--8.8
¦µ8.8/¦µ6.6/6 (32Beads/meter)
15--25M2/M
middle-hard hard materials
M--8.2

¦µ8.2/¦µ6/6

(32Beads/meter)

15--25M2/M
middle-hard hard materials
Quarrying
QG--11.4
¦µ11.4£¨11£©/¦µ8/6 ( 40Beads/meter)
7--10M2/M
middle-hard hard materials
QM--11
¦µ11/¦µ8/6 (37Beads/meter&32Beads/meter)
15--25M2/M
middle-hard hard materials
Concrete
C1--11
¦µ11/¦µ8/6.5 (40Beads/meter)
15--25M2/M
Dry cutting£º35Beads/meter)
C2--11
¦µ11/¦µ8/6.5 (40Beads/meter)

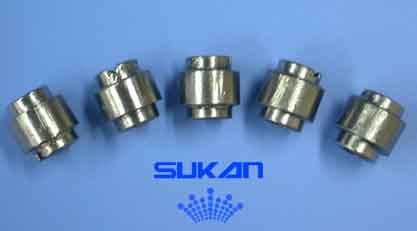

Sintered Diamond Wire Saw Beads
Bead
Sintered Bead Dimension
Support Characteristics
Steel Wire
 Life(m2/m) StoneKind
A
B
C
D
E
F
Ext.Diam
 Int.Diam
Length
 Ext.Diam Int.Diam
Length
Diam
Reference
mm
mm
mm
mm
mm
mm
mm
G
M
Middle-hard
G/M-8.2
8.2
6.0
6.0
6.0
4.1
10.5
3.9
6-9
15-25
Middle-hard
G/M-8.8
8.8
6.6
6.0
6.6
5.1
10.5
4.9
6-9
15-25
Middle-hard
G/M-10.0
10.0
7.5
6.0
7.5
5.1
10.5
4.9
7-10
15-25
Middle-hard
G/M-11.0
11.0
8.0
6.0
8.0
5.1
11.0
4.9
7-10
15-25
Middle-hard
G/M-11.0
11.0
8.0
6.0
8.0
5.1
11.0
4.9
 7-10
15-25
Marble quarrying
QG-11.4
11.4
8.0
6.0
8.0
5.1
11.0
4.9
 7-10
15-25
Granite quarrying
MQS-11
11.0
8.0
6.0
8.0
5.1
9.0
4.9

15-25
Marble quarrying


Note:
¡±G¡± is for granite cutting plastic mounted
¡°M¡± is for marble cutting plastic mounted
¡°QG¡± is for granite quarrying plastic mounted
¡°QM¡± is for marble quarrying plastic mounted
¡°QMS¡± is for marble quarrying spring bead
