SUKAN Coated Diamond and CBN , with metal coverage on the crystals, are highly adhesive in bond system and better thermal stable. Thus the tools life and processing cost are remarkably improved.

SUKAN provides metal coated products of

• All series of diamond grits
• All series of CBN grits
• Diamond micron powder of W10~20 and up sizes.
• CBN micron powder of W10~20 and up sizes.

SUKAN provides four kinds of metal coatings:

1.Ti Coated

Coating level 30 wt %
Coating level 50 wt %

2.Cu Coated

Coating level 30 wt %
Coating level 50 wt %

3.Ni Coated

Coating level 30 wt %
Coating level 55 wt %
Coating level 60 wt %

4.WC Coated



DIAMOND-CN
Diamond grits Nickel coated

Used in saw blades and abrasive wheels, their characteristics providing the better combining with abrasive and duration of wheels.


CBN-CN
CBN grits Nickel coated

Used in abrasive wheel, manufactured in resin bond system, their characteristics providing the better combining with abrasive and duration of wheels.

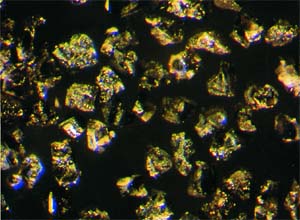

DIAMOND MICRON ¨C CN
Diamond micron powders Nickel coated

Micron powders of Diamond are used for grinding and polishing of various kinds of non-ferrous materials. A superior performance can be obtained from metal coated microns, for their higher retention with bond system and improved thermal stability.

CBN MICRON ¨CCN
CBN micron powders Nickel coated

Micron powders of CBN are used for grinding and polishing of various kinds of ferrous metal materials and alloys. A superior performance can be obtained from metal coated microns, for their higher retention with bond system and improved thermal stability.

OTHER SIZES AND SPECIFICATIONS ARE AVAILABLE UPON REQUEST
