APPLICATION:
Flexible Polishing Pads, which is integrated grains with diamond grit, supply a better performance in grinding stone with polishing effect to get high gloss in a short time, as compared with conventional polishing wheel, it is suitable for the grinding process of the curved or polygon surface.

 Instructions For Use:
1.Flexible polishing discs should be mounted on flexible rubber backer pad.
2.Operation speed:3600RPM
3.Refresh the cooling water adequately, preventing polishing discs or diamond sand from deterioration, but little water for Buff pad{final polish}.
4.Grinding pressure;1--2kg/cm2.
5.Grinding or polishing sequence:[(#60),#150,#300,#500,#1000,#2000,(#3000), Buff pad or[(#50),#100,#200,#400,#800, #1500,(#3000),Buff pad

OTHER SIZES ARE AVAILABLE UPON REQUEST
FLEXIBLE PLLISHING PAD
DIAMETER
SIZE1
SIZE2
COMMOM USE
60,80,100,125,150

#50,#100,#200,#400,#800,
#1500,#3000,#5000,BUFF

#60,#150,#300,#500,#1000,
#2000,#3000,#5000,BUFF

FOR METAL AREA
#50,#100,#200,#400
#60,#150,#300,#500
FOR GRINDING OF MARBLE AREA
80,100,125,150

#50,#100,#200,#400,#800,
#1500,#3000,#5000,BUFF

#60,#150,#300,#500,#1000,
#2000,#3000,#5000,BUFF



Wet Diamond Flexible Polishing Pads

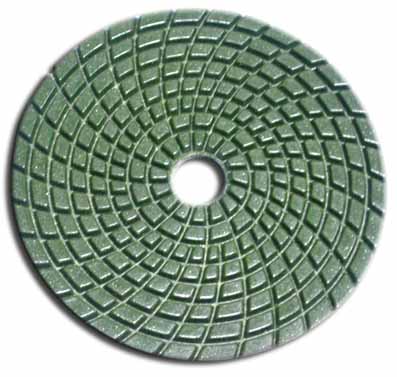

Spiral shape: high efficient and high glossing grade, super quality, it is often used in North American market. Super and approved quality and effecting a high grade gloss especially.

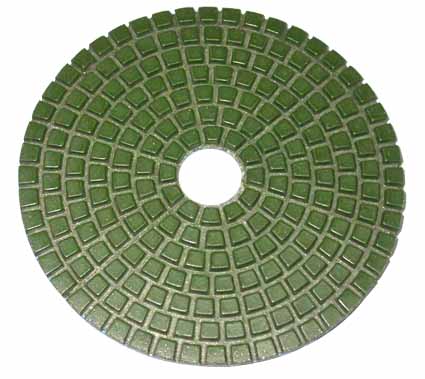

Lattice shape: high efficient performance and well wearable, super and approved quality, suitable for using in any country.



¡°R¡± series of diamond polishing pads, Super quality, it needs only 5 pieces of pads for one set to finish the whole process of polishing.
Dry Diamond Flexible Polishing Pads



Punctate shape: dry application,super quality, high efficiency and high glossing grade.

Except for "R" series of polishing pads, one set of diamond polishing pads is often composed of 9 pieces of pads with different grit size including grit 50/100/200/400/800/1500/3000/black buff/white buff. Further more, we can manufacture and supply polishing pads with various grit size upon your request. Actually, if you do not require very high glossing surface, you can chose the pads with suitable grit size.
Specification:
Diameter: 3, 4, 5 and 6 Inch
Thickness: 3mm (wet pads), 1.5mm (dry pads)
Other specifications can be available upon request.
