Synthetic
Diamond Impregnated Core Bits for Construction |
| General
Type Diamond Core Bits(DCB Series) |
|
| 70 SERIES |
80 SERIES |
102 SERIES |
| PART # |
SIZE |
PART # |
SIZE |
PART # |
SIZE |
| DIA |
thick-ness |
length |
DIA |
thick-ness |
length |
DIA |
thickness |
length |
| DCB10070 |
1¡± |
0.110¡± |
70 |
DCB10080 |
1¡± |
0.110¡± |
80 |
DCB100102 |
1¡± |
0.110¡± |
102 |
| DCB11470 |
11/4¡± |
0.110¡± |
70 |
DCB11480 |
11/4¡± |
0.110¡± |
80 |
DCB114102 |
11/4¡± |
0.110¡± |
102 |
| DCB11270 |
11/2¡± |
0.110¡± |
70 |
DCB11280 |
11/2¡± |
0.110¡± |
80 |
DCB112101 |
11/2¡± |
0.110¡± |
102 |
| DCB13470 |
13/4¡± |
0.126¡± |
70 |
DCB13480 |
13/4¡± |
0.126¡± |
80 |
DCB134102 |
13/4¡± |
0.126¡± |
102 |
| DCB20070 |
2¡± |
0.126¡± |
70 |
DCB20080 |
2¡± |
0.126¡± |
80 |
DCB200102 |
2¡± |
0.126¡± |
102 |
| DCB21470 |
21/4¡± |
0.126¡± |
70 |
DCB21480 |
21/4¡± |
0.126¡± |
80 |
DCB214102 |
2 1/4¡± |
0.126¡± |
102 |
| DCB30070 |
3¡± |
0.126¡± |
70 |
DCB30080 |
3¡± |
0.126¡± |
80 |
DCB300102 |
3¡± |
0.126¡± |
102 |
| DCB31270 |
31/2¡± |
0.134¡± |
70 |
DCB31280 |
31/2¡± |
0.134¡± |
80 |
DCB312102 |
31/2¡± |
0.134¡± |
102 |
| DCB40070 |
4¡± |
0.134¡± |
70 |
DCB40080 |
4¡± |
0.134¡± |
80 |
DCB400102 |
4¡± |
0.134¡± |
102 |
| DCB43470 |
43/4¡± |
0.134¡± |
70 |
DCB43480 |
43/4¡± |
0.134¡± |
80 |
DCB434102 |
43/4¡± |
0.134¡± |
102 |
| DCB51470 |
51/4¡± |
0.134¡± |
70 |
DCB51480 |
51/4¡± |
0.134¡± |
80 |
DCB514102 |
51/4¡± |
0.134¡± |
102 |
| DCB60070 |
6¡± |
0.134¡± |
70 |
DCB60080 |
6¡± |
0.134¡± |
80 |
DCB600102 |
6¡± |
0.134¡± |
102 |
|

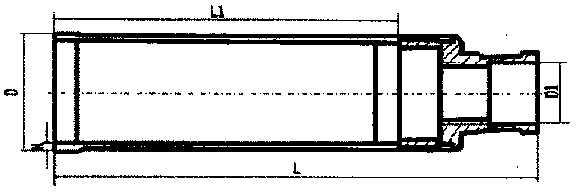

| Thin-wall
Core Bits(DTCB Series) |
DTCB
Series
Thin-wall Core Bits are used on glass, ceramics, porcelain, ceramic and
porcelain tile, limestone, slate, marble, granite, stone, and fiberglass. |
|
|
D(mm)
Diameter |
H(mm)
Wall thickness |
L1(mm)
Length |
|
8 |
2.6 |
110 |
|
10 |
2.6 |
110 |
|
12 |
2.6 |
150 |
|
14 |
2.6 |
150 |
|
16 |
2.6 |
150 |
|
18 |
2.6 |
150 |
|
20 |
2.6 |
150 |
|
22 |
2.6 |
240 |
|
24 |
2.6 |
240 |
|
26 |
2.6 |
240 |
|
30 |
2.6 |
240 |
|
32 |
2.6 |
330 |
|
38 |
3.0 |
330 |
|
45 |
3.0 |
330 |
|
50 |
3.0 |
330 |
|
57 |
3.0 |
330 |
|
|
D(mm)
Diameter |
H(mm)
Wall thickness |
L1(mm)
Length |
|
63 |
3.0 |
330 |
|
76 |
3.2 |
330 |
|
82 |
3.2 |
330 |
|
88 |
3.2 |
330 |
|
102 |
3.2 |
330 |
|
107 |
3.2 |
380 |
|
110 |
3.2 |
380 |
|
120 |
3.2 |
380 |
|
127 |
3.2 |
380 |
|
132 |
3.2 |
380 |
|
152 |
3.2 |
380 |
|
157 |
3.2 |
380 |
|
159 |
3.2 |
380 |
|
170 |
3.5 |
380 |
|
178 |
3.5 |
380 |
|
200 |
3.5 |
380 |
|
OTHER
SIZES AND SPECIFICATIONS ARE AVAILABLE UPON REQUEST |
| |
|
| |
