DBEC Series

Synthetic Diamond Impregnated Bits ¨C Big Size Engineering Core
Synthetic Diamond Impregnated Bits of big sizes used in many engineering application.

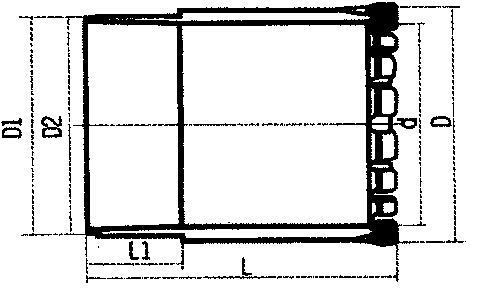

D/d(mm)
L(mm)
waterways
Thread(mm)
D1
D2
L1
§¶111/93
131
12~14
103
101.5
40
§¶131/113
146
16~20
122
120.5
40
§¶150/132
146
18~20
141
139.5
40
§¶171/149
176
24~28
160
158.5
40
§¶200/179
180
26~30
190
188.5
40
§¶220/200
180
26~30
209
206
40


OTHER SIZES AND SPECIFICATIONS ARE AVAILABLE UPON REQUEST
