DWLC Series
Synthetic Diamond Impregnated Bits ¨C Wire Line Core

Synthetic Diamond Impregnated Bits are widely used in the fields of geological exploration, engineering-oriented, hydroelectric and building engineering.

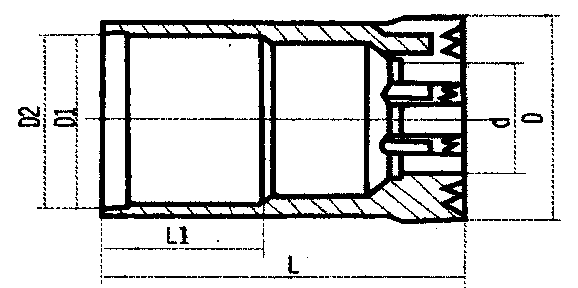

Type
D/d(mm)
L(mm)
Waterways
Thread(mm)
D1
D2
L1
hydro- power standard
§¶46.5/25
80
4
40.5
39
42
§¶59.5/36
80
4~6
53.5
52
42
§¶75/49
80
6~8
68.5
67
42






Metallurgical standard












§¶47*/25
70
4~6
41
39.5
32
§¶60*/36
80
8~12
53.5
52
42
§¶75*/49
90
10~14
68.5
67
42






Geology- mineral standard












§¶46.5/25
80
4~6
40.5
39
33
§¶59.5/35
80
8~12
53.5
52
33
§¶75/49
80
10~14
68.5
67
33
§¶91/62
80
12~16
84
82.5
33

OTHER SIZES AND SPECIFICATIONS ARE AVAILABLE UPON REQUEST
